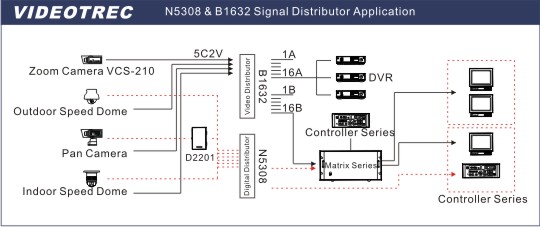

- Bi-directions RS-485 data distributor.
- 1 Input by 7 Outputs.
- Provides surge protection for all 8 ports.
- Up to 1.8 Km distance data transmission.
- Synchronizes Rx/Tx for 7 outputs, reduction scanning time for system enquiry.
|
|
|
|
|
 |
- Amplitude of Video Input/Output：1.0 ~ 2.0 Vp-p/75Ω
- Signal/Noise Ratio：50dB
- Band Width：10 Hz ~ 15 MHz / ±0.3dB
- Connector：BNC
- Modules Design：Could expand to 48 inputs
- Rack：Standard engine case 96 outputs
|
|
|
 |
|
|
|
 |
- Modular structure.

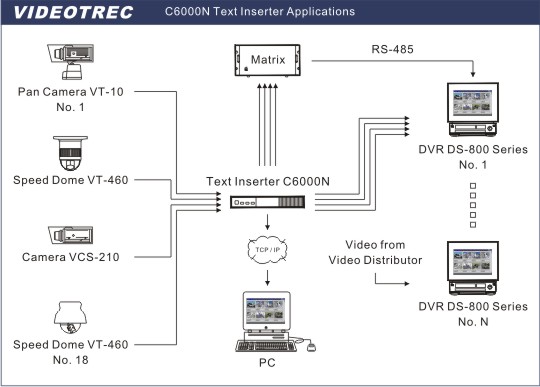

- Applied the Chinese/English character and overlay to each video picture displaying on any video monitor.
- Comply with TCP/IP protocol, must be capable of remote editing for any text channel via area network or Internet (LAN, WAN).
- Each text inserter shall have an individual IP address.
- Build-in homepage in order to update the firmware and IP address.
- Installation of 16 channels text interactive module enabled.
|
|
|
|
|
 |
- Sensitive：≧ 0.12V/μ bar
- Power Supply：6 ~ 12 VDC
- Band Width：100 ~ 5500 Hz
- Transmission Range：400 ~ 1500m
- Environmental Temperature：0°C ~ 40°C
- Amplitude of Audio Output：≧ 5Vp-p
|
|
|
|
|
 |
- A single 75-ohm coaxial cable (not supplied) between the adaptor and the camera carries the video output signal, power, and sync signal.
- The unit has a built-in cable compensation circuit. This can switch the video signal compensation level to any of three levels, according to the length of the cable.
- The synchronization selector switch allows the use of an external sync signal.
- The unit is provided with input/output sync connectors. Hence, the YS-W230 can supply a sync signal to other YS-W230s. Thus, you can connect two or more YS-W230s together, up to a maximum of 50 units.
- All cameras connected to the YS-W230 are automatically synchronized with each other.
- Two video output connectors for each camera enable system flexibility.
|
|
|
